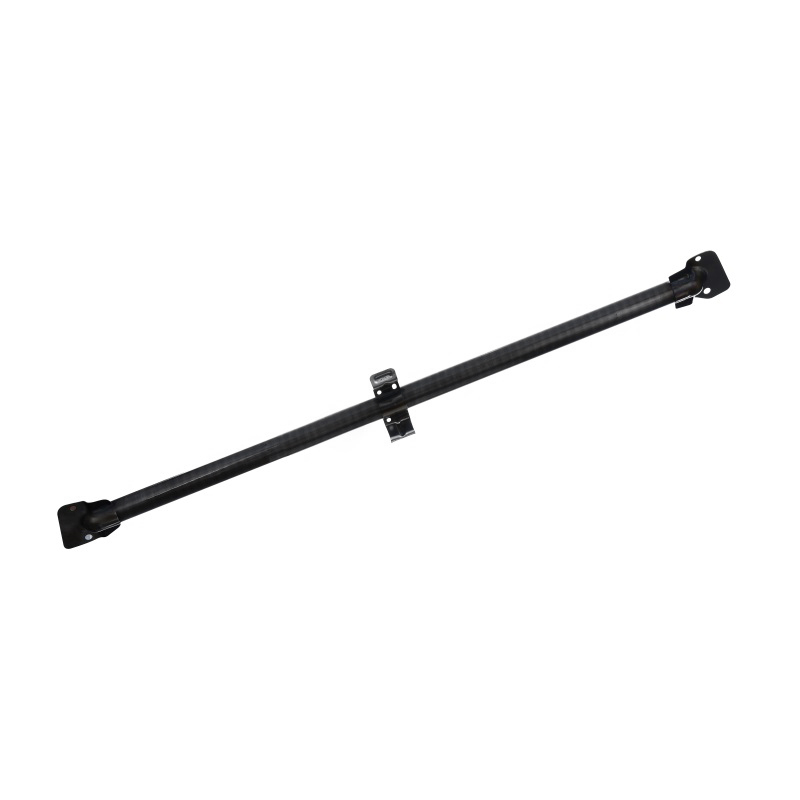

Side Door Impact Beam

BR1500HS significantly enhances the safety performance, lightweight design, and cost-effective production methods of the automotive industry. BR1500HS is one of the strongest advanced high-strength steels in the market and has become the preferred material for automotive applications such as side impact beams, bumpers, and structural components.

Specifications and Sizes

For requirements beyond the established specification range, after further discussion and agreement, trial production can be arranged.

Chemical Composition (Heat Analysis) (%)

1. When the yield phenomenon is not obvious, use Rp0.2. The sample complies with JIS Z 2241 No.5 standard, and the direction of the sample is transverse.

Mechanical Properties

The mechanical performance testing of galvanized products is carried out without coating. The pipes should be supplied in a quenched and tempered (Q+T) delivery state.

For steel plates and strips, the size, appearance, and weight must comply with the specifications specified in the Q/BQB 301 standard. The allowable deviation in chemical composition of finished steel plates and strips should comply with the provisions of GB/T 222.

How Do Side Impact Bars Work

Side impact bars, also known as side impact beams or side intrusion beams, play a crucial role in automotive safety by providing structural support and protection during side collisions. These beams are strategically placed within the doors and side panels of vehicles to absorb and dissipate the energy from a crash, minimizing the risk of injury to occupants.

What Are Side Impact Bars?

Side impact bars are reinforced structures embedded in the doors and sides of a vehicle. They are designed to withstand high levels of force, thereby protecting the passengers inside.

How Do Side Impact Bars Function?

When a side collision occurs, the force of the impact is transmitted through the vehicle's body. Here’s how side impact beams work to protect the occupants:

Energy Absorption: Side impact beams are made from high-strength materials, such as automotive-grade hot-formed steel. This steel undergoes a transformation into an austenitic structure at high temperatures, followed by rapid cooling (quenching). This process significantly increases the strength of the steel to 1500 MPa or above, allowing the beams to absorb and dissipate a substantial amount of energy from the collision.

Energy Distribution: The beams help distribute the force of the impact across a wider area of the vehicle’s body, reducing the concentration of force on any single point. This distribution minimizes the deformation of the vehicle’s interior space, protecting the occupants.

Structural Integrity: Impact beams in cars are integral to maintaining the structural integrity of the vehicle. By preventing excessive deformation, these beams ensure that the passenger compartment remains intact, reducing the risk of serious injuries.

Minimizing Intrusion: Side intrusion beams are specifically designed to prevent objects or parts of the vehicle from penetrating the cabin during a collision. This is crucial in keeping passengers safe from external debris and other hazardous materials.

Materials and Design of Side Impact Door Beam

The effectiveness of side impact beams largely depends on the materials and design used. Modern side impact beams utilize advanced materials like hot-formed steel, which not only provides exceptional strength but also flexibility. This combination allows the beams to bend without breaking, absorbing more energy and providing better protection.

Side Door Beams Provide Protection

In the ever-evolving landscape of automotive safety, one component often overlooked is the hot-rolled steel tube. These vital structures serve as a critical line of defense, providing essential protection to vehicle occupants during side-impact collisions. As safety standards become increasingly stringent, understanding the integral role that side-impact door beams play can empower consumers to make informed decisions when purchasing a vehicle.

At first glance, the side impact door beam may not seem remarkable. However, this robust reinforcement is designed specifically to absorb and dissipate the energy generated during a side collision. Strategically placed within the vehicle’s door structure, these beams work in tandem with other safety features such as airbags and crumple zones to minimize injury risks. In fact, studies have shown that vehicles equipped with high-quality side-impact door beams significantly enhance occupant protection, making them a non-negotiable feature for any safety-conscious driver.

The engineering behind side-impact door beams is a testament to the advancements in automotive technology. Constructed from high-strength materials, such as steel or aluminum, these beams are designed to withstand extreme forces. Their placement within the door not only reinforces structural integrity but also reduces the likelihood of intrusion into the cabin during an accident. This protection becomes especially critical for families, who rely on these safety measures for their loved ones.

Moreover, the presence of side impact door beams is a clear indicator of a vehicle's commitment to safety. As consumers become more aware of automotive safety ratings, understanding features like these can influence purchasing decisions. Auto parts suppliers that prioritize the installation of superior side-impact door beams are setting a standard for safety that resonates with modern buyers.

The Vital Role of Hot Rolled Steel Tubes in Automotive Safety

Hot-rolled steel tubes offer distinct advantages over other materials, making them a popular choice in the automotive sector. These tubes are produced at high temperatures, which ensures excellent ductility and toughness. As a result, hot-rolled steel tubes can easily withstand extreme pressures and impacts, making them ideal for the side-impact door beams that are integral to vehicle safety.

One of the key benefits of using hot rolled steel tubes in the construction of side-impact door beams is their ability to absorb shock effectively. In the event of a side collision, the energy generated is dispersed throughout the beam, minimizing the force transferred to the vehicle's interior. This energy absorption capability significantly reduces the risk of injury to passengers, thereby enhancing overall vehicle safety.

Moreover, hot-rolled steel tubes provide structural integrity while also allowing for design flexibility. Manufacturers can create complex shapes and configurations that not only bolster safety but also support aesthetic vehicle design. The strength and reliability of hot-rolled steel tubes enable engineers to focus on innovative designs without compromising safety standards.

Another important aspect to consider is cost-effectiveness. The production of hot rolled steel tubes is generally more economical compared to alternatives like aluminum or composite materials. This affordability allows car manufacturers to incorporate high-quality safety features, such as the side impact door beam, without inflating vehicle costs excessively.

In conclusion, the integration of hot rolled steel tubes in side-impact door beams exemplifies the commitment to safety in the automotive industry. These tubes not only enhance structural performance but also provide a reliable barrier between passengers and potential hazards on the road. As we continue to advance in automotive technology, the role of hot-rolled steel tubes will undoubtedly remain central in the quest for greater vehicle safety. Investing in these materials translates to a safer, more resilient driving experience for everyone.
