OD(mm): 15,19,20,25,etc. Thickness(mm): 1,1.2,1.5,2.0 mm Length(mm): 50-12000. Standard: JIS G 3445,ASTM A513, EN10305-3, GB/T 13793, etc. Grade: STKM11,STKM12, STKM13,1008,1020,1035,E195,E235,E355, Q195,Q235B, Q355B, etc. For requirements out of the established specification range, we can arrange the trial production after further discussion and agreement.
Product Features

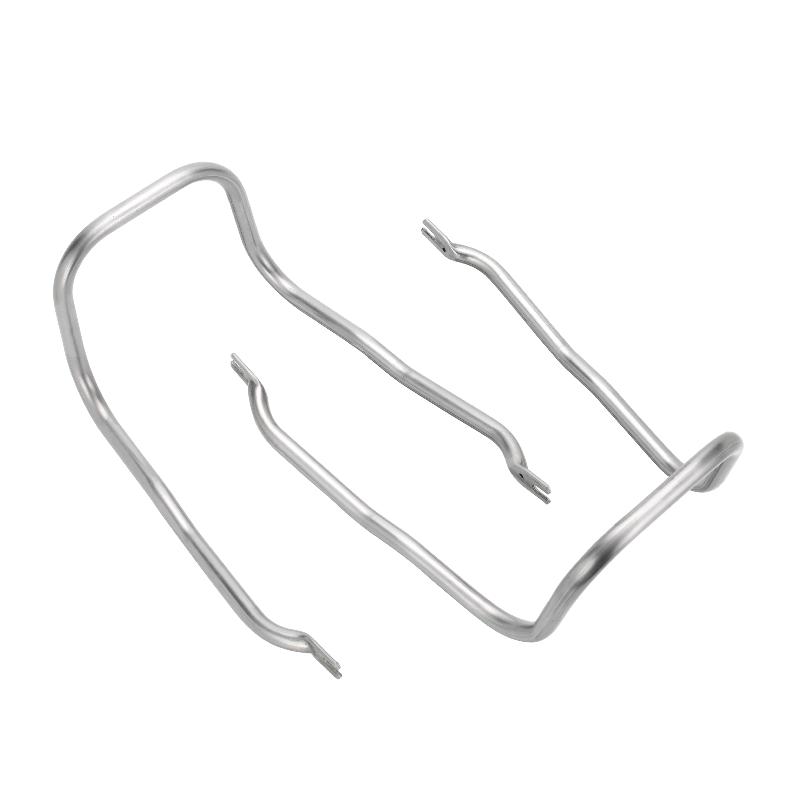

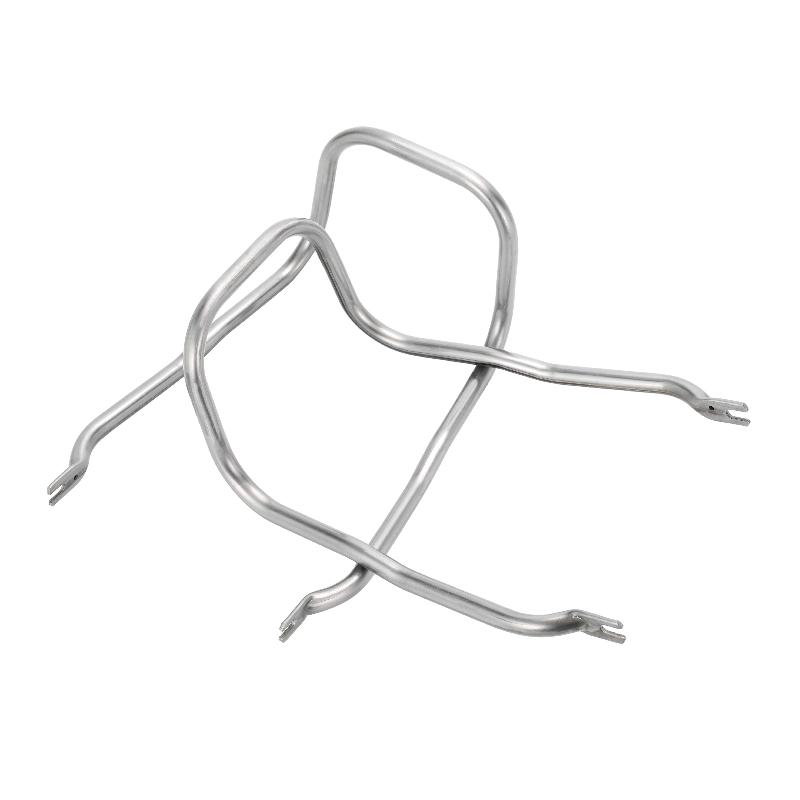

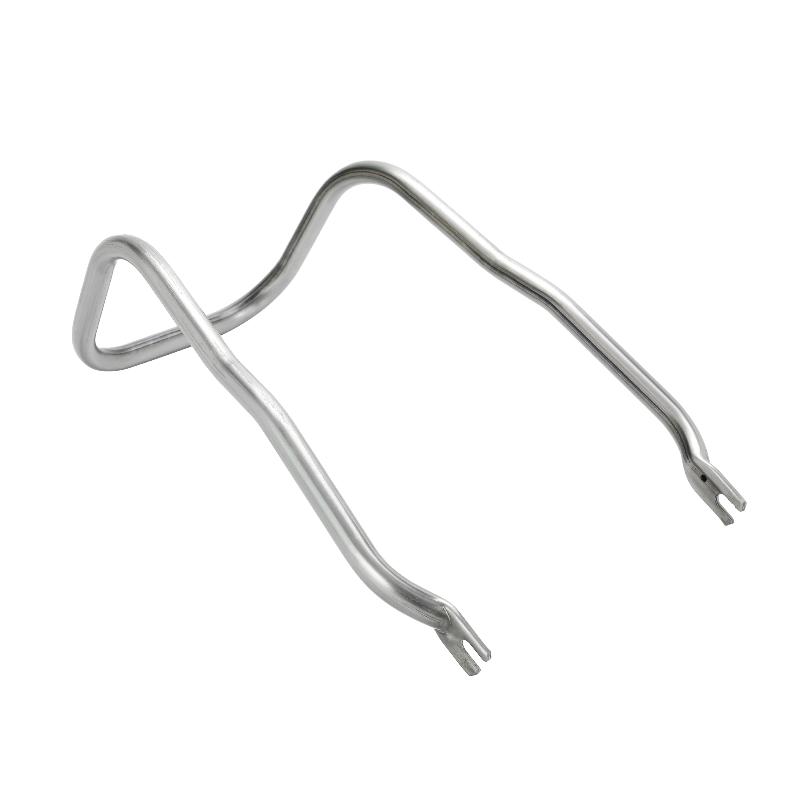

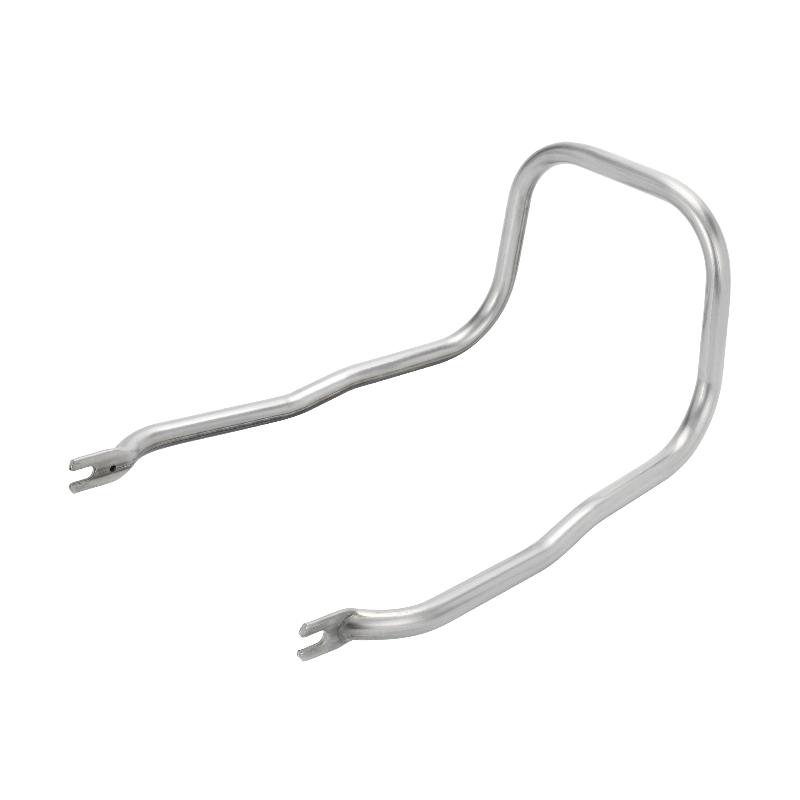

Motorcycle carrier has the characteristics of lightweight and is durable, usually made of high-quality aluminum alloy or steel with good load-bearing capacity and stability.
It can carry a variety of items safely and reliably , such as luggage, backpacks or shopping bags. The reasonable design and easy installation are suitable for all types of motorcycles.
Parameter
Chemical Composition (Heat Analysis) (%)
|
Grade |
Steel number |
C |
Si |
Mn |
P |
S |
Alt |
|
E195 |
1.0034 |
≤0.15 |
≤0.35 |
≤1.20 |
≤0.025 |
≤0.025 |
≥0.015 |
|
E235 |
1.0308 |
≤0.17 |
≤0.35 |
≤1.20 |
≤0.025 |
≤0.025 |
≥0.015 |
|
E355 |
1.0580 |
≤0.22 |
≤0.55 |
≤1.60 |
≤0.025 |
≤0.025 |
≥0.02 |
Mechanical Properties
|
Grade |
Steel number |
Minimum values for the delivery conditions |
||||||
|
+CR |
+A |
+N |
||||||
|
Rm MPa |
A % |
Rm MPa |
A % |
Rm MPa |
ReH |
A % |
||
|
E195 |
1.0034 |
330 |
8 |
290 |
28 |
300-440 |
195 |
28 |
|
E235 |
1.0308 |
390 |
7 |
315 |
25 |
340-480 |
235 |
25 |
|
E355 |
1.0580 |
540 |
5 |
450 |
22 |
490-630 |
355 |
22 |
Tolerance
|
Outside diameter and tolerance(mm) |
Wall thickness(mm) |
||||
|
1.0 |
1.2 |
1.5 |
2.0 |
||
|
15 |
±0.10 |
±0.1 |
±0.1 |
±0.1 |
±0.1 |
|
19 |
±0.1 |
±0.1 |
±0.1 |
±0.1 |
|
|
20 |
±0.10 |
±0.1 |
±0.1 |
±0.1 |
±0.1 |
|
16 |
±0.1 |
±0.1 |
±0.1 |
±0.1 |
|
|
25 |
±0.1 |
±0.1 |
±0.1 |
±0.1 |
|
The tolerance could be customized according to customer’s requirement.
1.Selecting high-quality carbon steel as the raw material, which boasts favorable mechanical properties, including strength and toughness and demonstrates stable performance during bending, punching and other processing procedures.
2.CBIES uses advanced high-frequency welding technology to ensure the consistent quality of weld joints, effectively minimizing welding defects. This approach enhances the strength and fatigue life of welded areas, thereby guaranteeing the safety of the product during usage.
3.During the welding process, strict control is exerted over welding parameters such as current, voltage and speed to ensure the integrity of the weld quality. Additionally, post-weld treatments are implemented, including online cleaning of the weld seam and real-time inspection for flaws, to confirm there is on defect such as cracks, incomplete penetration and slag inclusion in the welded areas.
